30 Channel LED DMX512 Decoder Control Single or RGB Lamps 9-24VDC 2A/CH

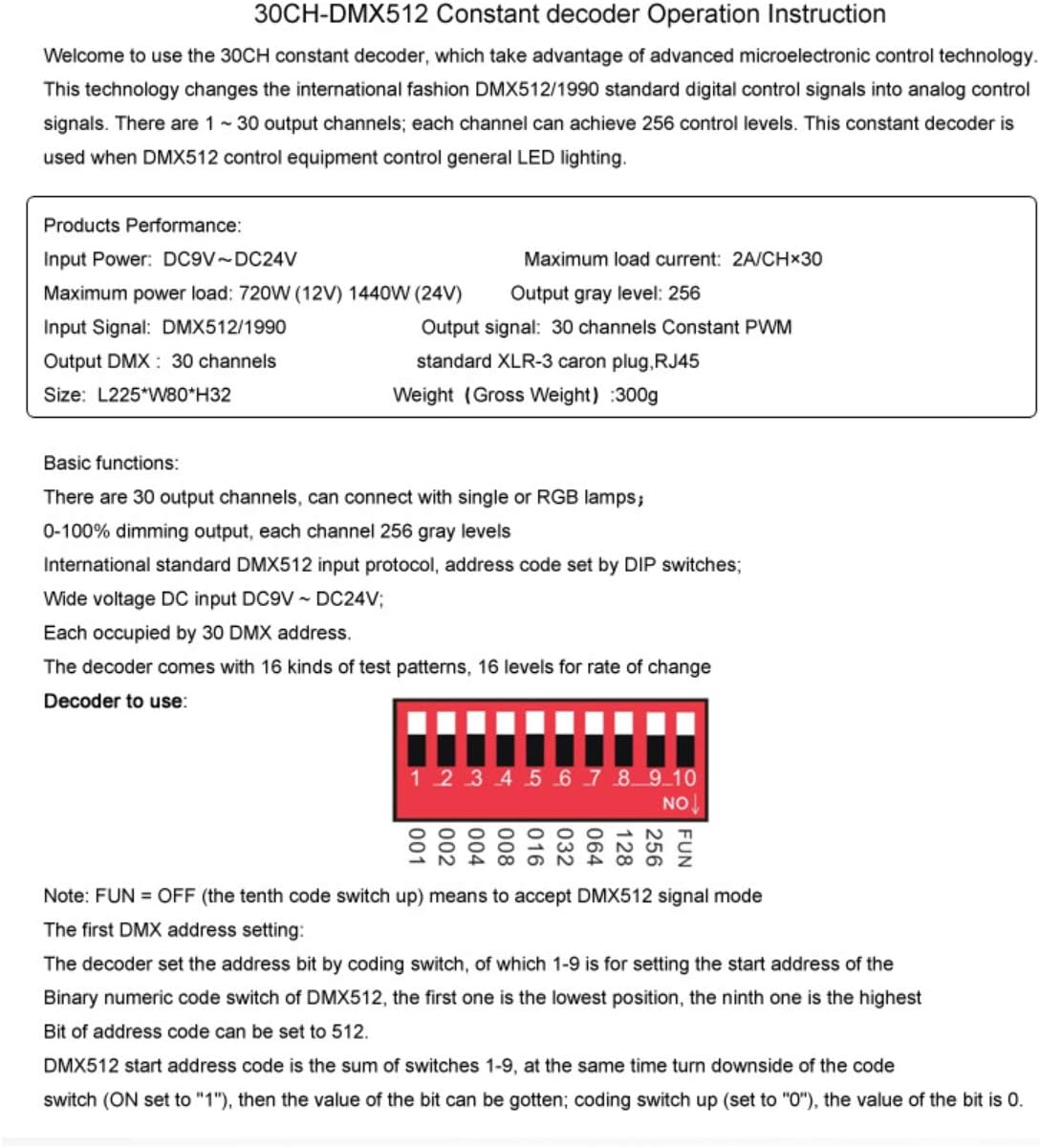

goldgecko 30 Channel LED DMX512 Decoder Control Single or RGB lamps 9-24VDC 2A/CHWelcome to use the 30CH constant decoder, which take advantage of advanced microelectronic control technology. This technology changes the international fashion DMX512/1990 standard digital control signals into analog control signals.There are 1~30 output channels; each channel can achieve 256 control levels. This constant decoder is used when DMX512 control equipment control general LED lighting.Model:30 Channel DMX512 DecoderPower:DC9-24VCurrent:2A per Channel MaxWatts:9VDC-540W Max, 12VDC-720W Max, 24VDC-1440W MaxDMX Type:DMX 512Output DMX:30 ChannelsOutput Gray Level:256Input Signal:DMX512/1990Output Signal:30 Channels Constant PWMDimensions:L8.85''*W3.15''*H1.25''Warranty Period:2 YearStandard XLR-3 caron plug, RJ45

• The DMX decoder can connect with single or RGB lamps, control 30 channels LED lights via DMX control signal.
• 0~100 percent dimming output, 256 levels of gray per channel. The decoder comes with 16 kinds of test patterns ,16 levels for rate of change.
• The decoder accept standard XLR-3 caron plug, RJ45 type connections for DMX signal input or output, International standard DMX512 input protocol, address code can be set by DIP switch.
• This decoder is able to accept 9-24VDC at 2A per channel (thirty channels total) for max load of 540W/9V, 720W/12V, 1440W/24V.
• Use in LED advertising module,light, bar, various dimmable lamps.
