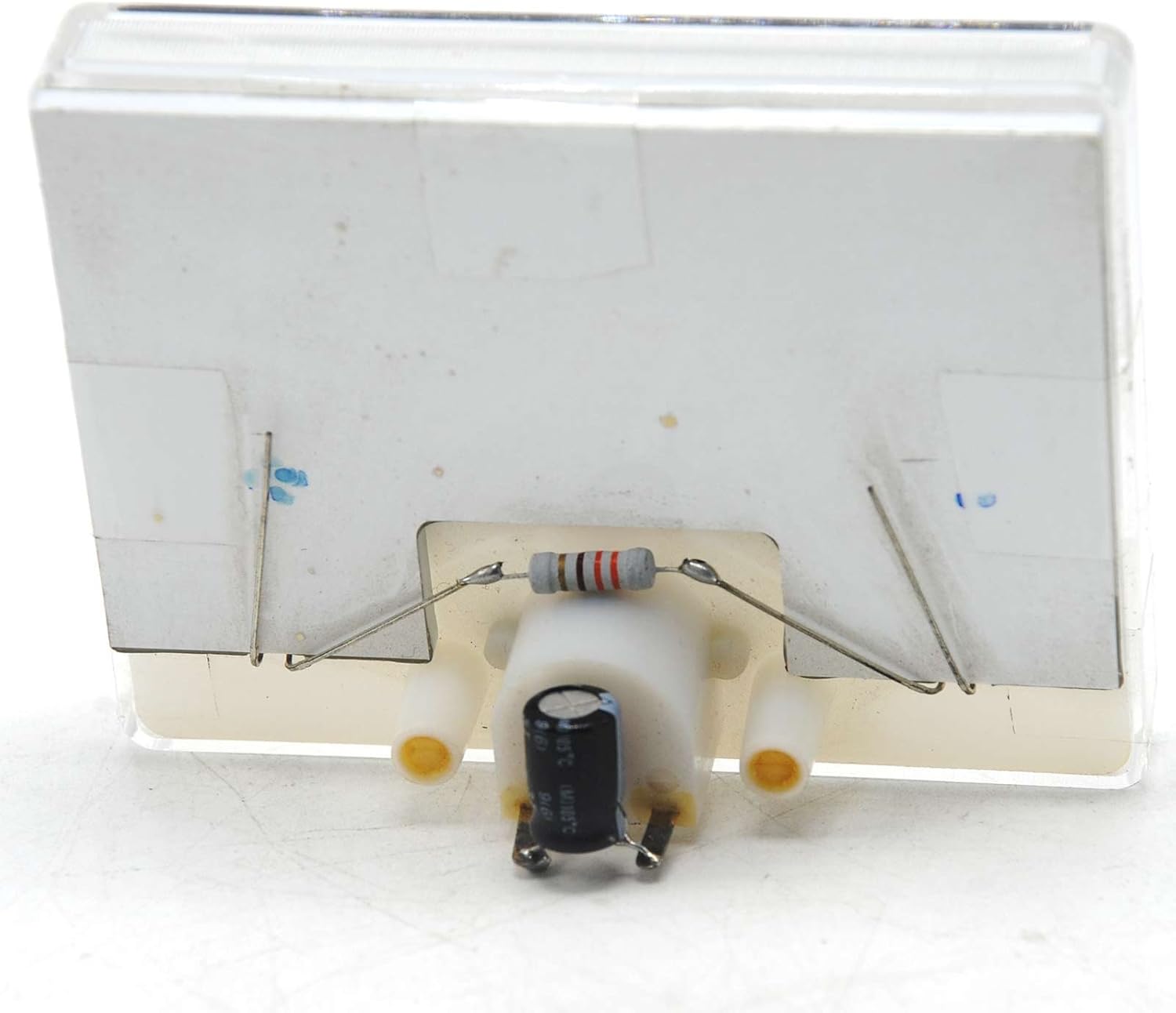

DB Level Header Amplifier chassis Audio Backlight TN-90-42 Panel VU meter

Description: Pointers Material:Zinc and copper-nickel alloy Pointer color:white The direction of the pointer swing : left to right Pointer length : 44± 1 mm from the center axis to the needle end Pointer width : 0.45 ± 0.05 mm Overall Size:90mm(L) x 70mm(H) Display Area:80mm(L) x 45mm (H) Electrical Characteristics: standard test conditions temperature: 20 ℃, humidity 70% . Can also be tested under normal temperature and humidity The influenza degree pointer at the zero scale to the maximum scale sensitivity of 960uA ± 8% (full scale position) internal impedance :650Ω ± 10% Insulation impedance meter outside the box plus the electrical circuit with 500V DC plus 50M ohm meter shell. Electrical insulation of the circuit impedance is 500V DC voltage test of the insulation value. Pointer to overlap with the zero-scale tolerance of ± 1mm balanced meter using a standard position and tilt 90 degrees to allow the error range of ± 1mm pointer to mount the current instant plus three times the full scale current, and slowly reduced to the the electric influenza degree 1/2 reading, The pointer will return to the scale plate within 1/3 scale friction meter coupled with the current, and slowly increase or decrease to a certain value, indicating the point of error range of ± 1mm, brake instantly plus scale plate 2/3 of the current value of the pointer indicates the location of the time required for a second or less. package: 1pc VU meter level header audio power Amplifier chassis backlight Denon TN90

• Pointers Material:Zinc and copper-nickel alloy
• Pointer color:white
• The direction of the pointer swing : left to right
• Pointer length : 44± 1 mm from the center axis to the needle end
• Pointer width : 0.45 ± 0.05 mm
