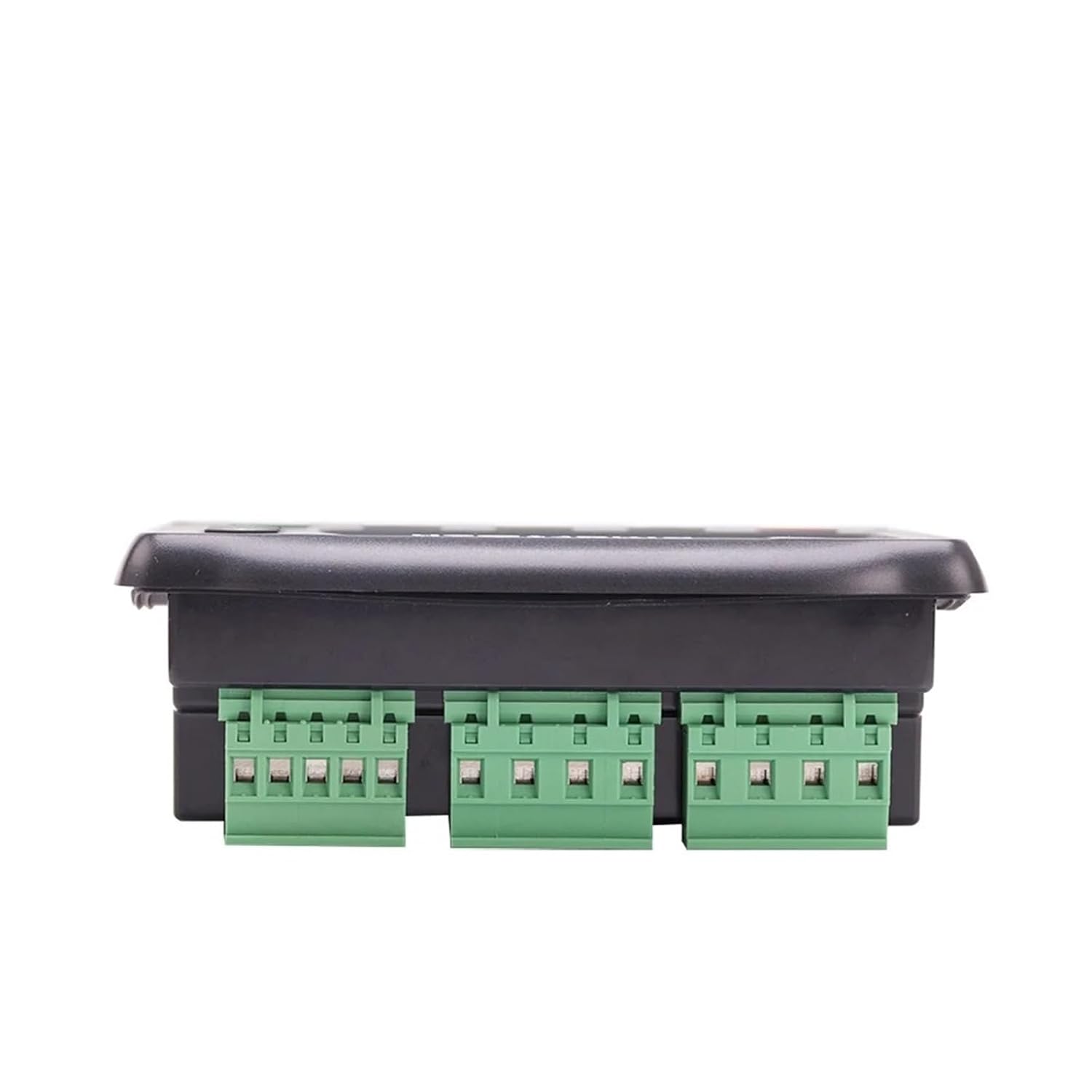

HGM420N Diesel Generator Set Controller Auto Start Electronic Universal Display Remote Board Controller

Electronic Engine ControlHGM 420N Diesel generator set controllerHGM420N: AMF (Auto Mains Failure), updates based on HGM410N, moreover, has mains electric quantity monitoring and mains/generator automatic transfer control function, especially for automatic system composed by generator and mains. 132x64 with backlight, selectable language interface (Chinese, English, Spanish, Turkish, Russian and French), push-button operation; Improved wear-resistance and scratch resistance due to hard screen acrylic; Silicon panel and pushbuttons for better operation in high/low temperature environment; Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and frequency 50/60Hz;Collects and shows 3-phase voltage, current, power parameter and frequency of generator or mains.Mains GeneratorLine Voltage (Uab, Ubc, Uca) Line Voltage (Uab, Ubc, Uca)Phase Voltage (Ua, Ub, Uc) Phase Voltage (Ua, Ub, Uc)Frequency (HZ) Frequency (HZ)Phase Sequence Phase SequenceLoadCurrent (IA, IB, IC)Split-phase and Total Active Power (kW)Reactive Power (kvar) Apparent Power (kVA)Power Factor (PF)Accumulated Energy (kWh)Output Percentage with Load (%)For Mains, controller has over voltage, under voltage and loss of phase detection functions; For generator, controller has over voltage, under voltage, over frequency, under frequency, over current and over power detection functions; Precision collect and display parameters about Engine, Temp. (WT) °C/°F Oil pressure (OP) kPa/psi/bar Fuel Level (FL) % remain fuel level L Engine Speed (RP) r/min Battery Voltage (VB) V Charger Voltage (VD) V Hours Counter (HC) Start times Control & Protection automatic startstop of the genset, ATS(Auto Transfer Switch) control with perfect fault indication and protection function; With ETS(Energize To Stop), idle control, pre-heat control, speed raise control and speed drop control function, All output ports are relay-out; Parameter setting: parameters stored in internal FLASH can be modified and cannot be lost even in case of power outage; all the controller parameters can be adjusted using front panel of the controller or via USB or RS485 interface by using PC. Multiplex input port 3 and 4 can be used in various fields: input 3 can be used as auxiliary input port or fuel level sensor while input 4 can be used as auxiliary input port or configurable sensor. More kinds of curves of temperature, oil pressure, fuel level can be used directly and users can define the sensor curves by themselves; Configurable sensor: can be set as temperature sensor, oil pressure sensor or fuel level sensor, enable the detection of double temperature, double oil-pressure and double fuel level. Multiple crank disconnect conditions (magnetic pickup, oil pressure, generator frequency) are optional; With emergency start function; With fly teeth auto-recognize function; Widely Power supply range: (8~35)V, suitable to different start battery voltage environment. All parameters used digital adjustment, instead of conventional analog modulation with normal potentiometer, more reliability and stability; With maintenance function. Types (date or running time) can be set. Actions (warning, alarm shutdown) can be set when maintenance time out; With event log function (max. 99 pieces of record), real-time clock, and schedule to start/stop generator function (start once monthly/weekly/daily on/off load can be set). IP55 waterproofness with rubber-ring gasket; With metal fixing clips; Modular design, self-extinguished ABS plastic enclosure, pluggable connection terminals and embedded installation way; compact structure with easy mounting.==========Model Number : HGM420N
