Springdale Privacy Door Lever for Bedrooms and Bathrooms, Fits Standard Doors, Oil Rubbed Bronze – Design House, WM470053
4.7 (128 items)
Limited Time Sale$12.07 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 238827253 | Release Date | 2026/07/11 | List Price | $8.05 | Model Number | 238827253 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Design House WM470053 Springdale Privacy Door Handle in Oil Rubbed Bronze and ergonomic shape, this door handle features versatility in style and design that coordinates well with traditional, rustic, and industrial farmhouse styles alike. This lever is operated by a turn-button knob on one side, perfect for bathroom and bedroom doors or wherever privacy is needed. Designed for left or right-hand doors, this door lever fits the two most common backsets in the U.S. (2-3/4 inches and 2-3/8 inches). The durable 2-way latch has a 1/2 inch latch bolt plated in nickel and does not budge once in place. Use this locking lever on standard 1-3/8 inches and 1-3/4 inches thick doors. This lock has a 1-inch by 2-1/4 inches radius corner faceplate and features a 5-pin cylinder for your security. If you are preparing your door for installation, the cross bore should be 2-1/8 inches in diameter and the edge bore should be 1 inch in diameter. This latching door handle is ANSI Grade-3 certified and rated for residential security. By installing the Design House Springdale Privacy Lockset in your home, you gain a sense of security and comfort. Designed and manufactured by Design House, the trusted source for quality lighting, hardware, plumbing, kitchen, and bath products for every taste and budget.

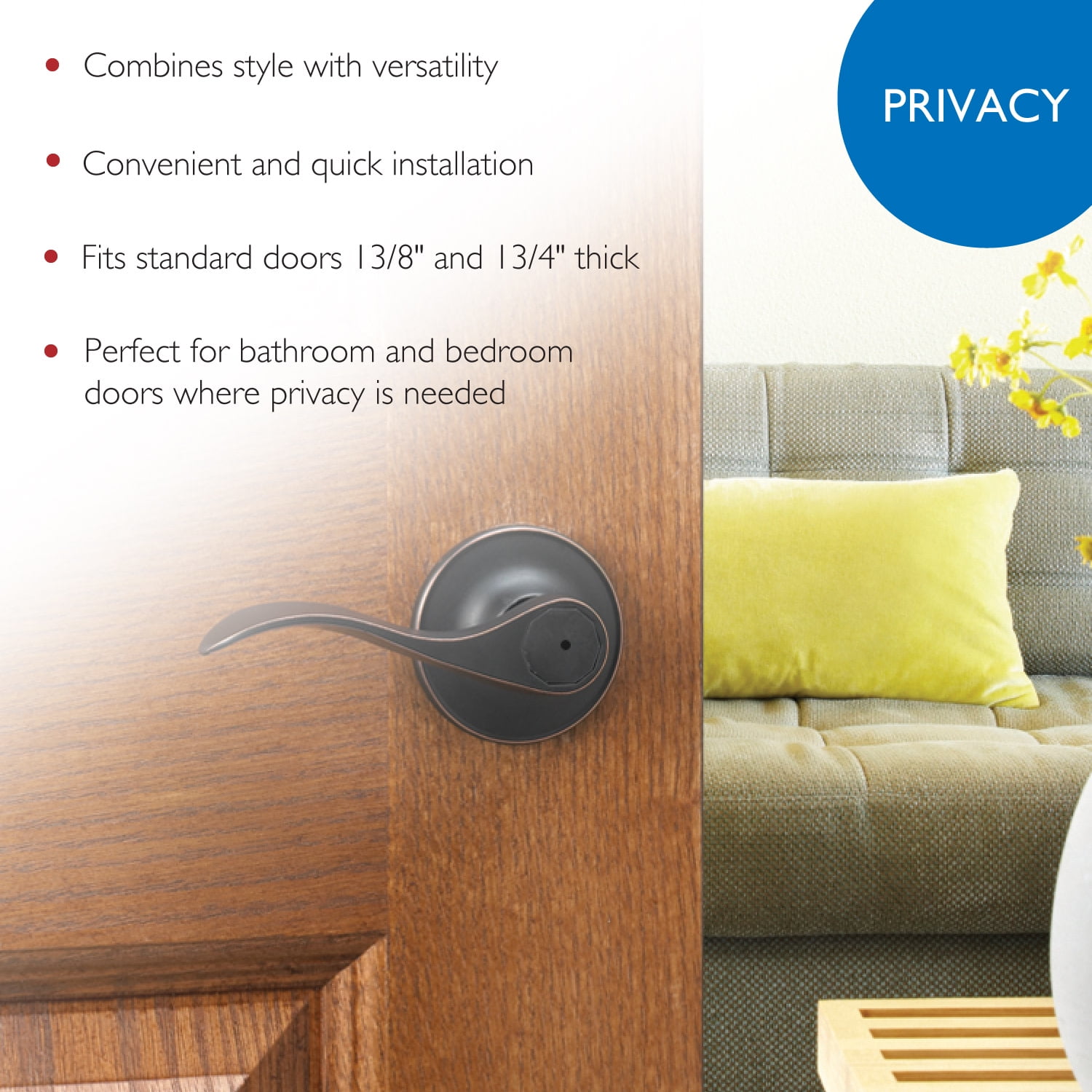

- Fully Reversible: Designed for both left- or right-hand doors; Fits standard 1-3/8-inch and 1-3/4-inch thick doors
- Oil Rubbed Bronze Finish: Coordinates with rustic, vintage and industrial farmhouse styles alike

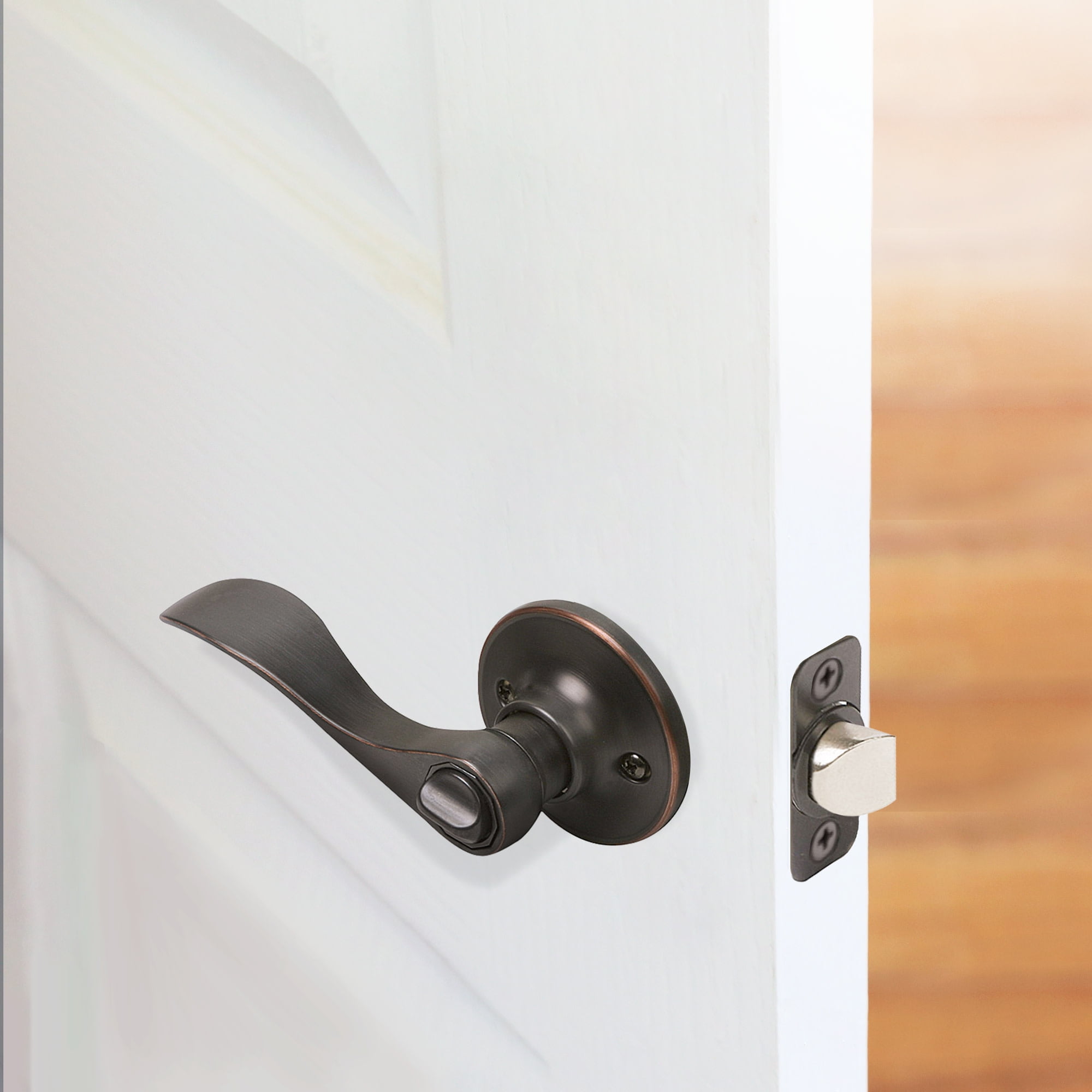

- Privacy Door Handle: Perfect for bathroom and bedroom doors or wherever privacy is needed
- Convenient and Quick Installation: Includes 1/2 inch latch bolt plated, mounting hardware, and installation instructions

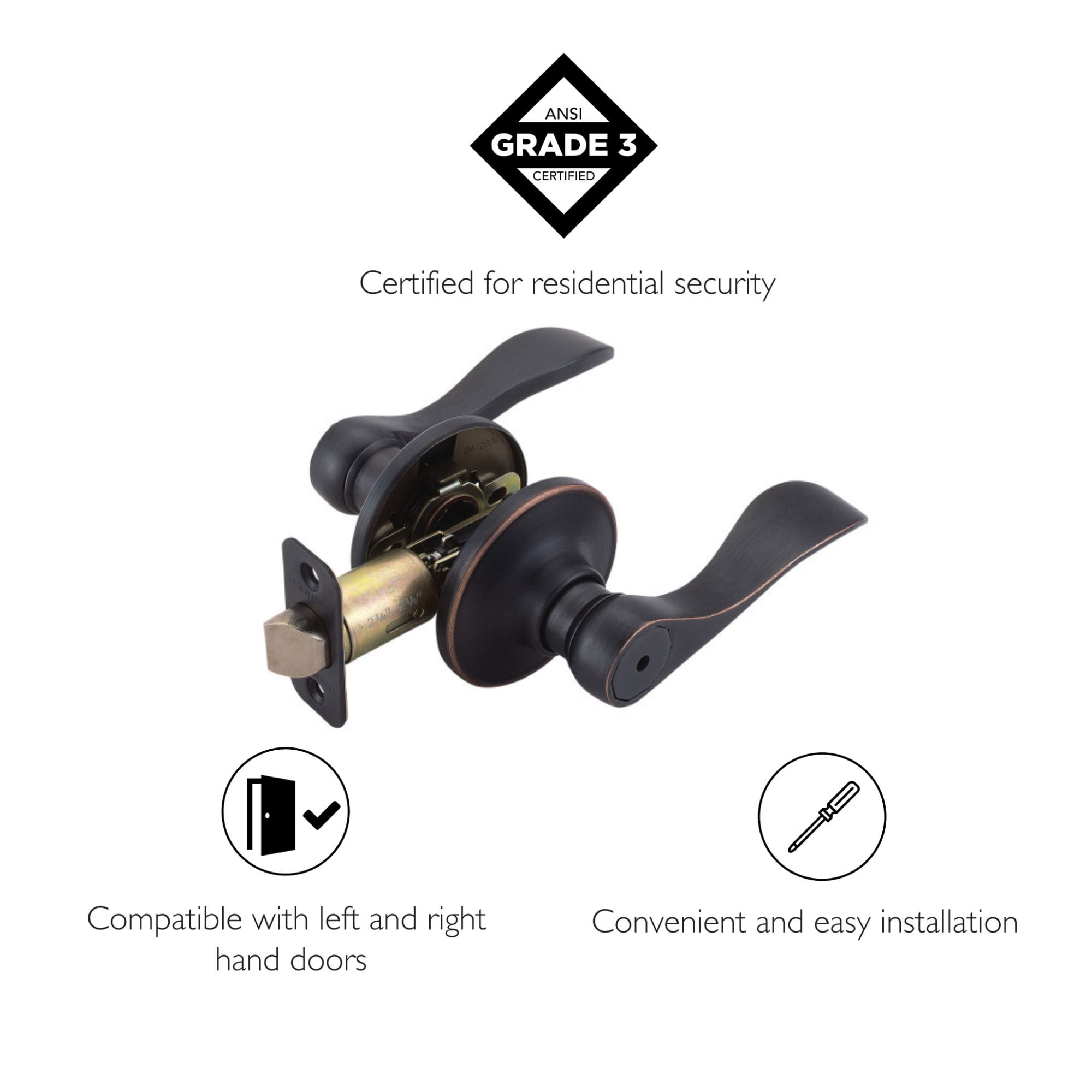

- ANSI Grade 3 Certified: This lock has a 1-inch by 2-1/4 inches radius corner faceplate and features a 5-pin cylinder for your security and is rated for residential security
- Buy with Confidence: 5-Year limited mechanical and finish warranty
| Door handle set type | Interior Door Handle Sets |
|---|---|
| Brand | Design House |
| Finish | Oil Rubbed Bronze |
| Material | Brass |
| Backset size | 2-3/4 in |
| Ansi class | Grade 3 |
| Features | Privacy |
| Color | Bronze |
| Rec. use | Hardware |
| Items included | Mounting Hardware Included |
| Accessories | Mounting Hardware, Installation Instructions |
| Pack quantity | 1 |
| Mount type | Door |
| Orientation | Reversible |
| Model | WM470053 |
| Projection | 2.25 |

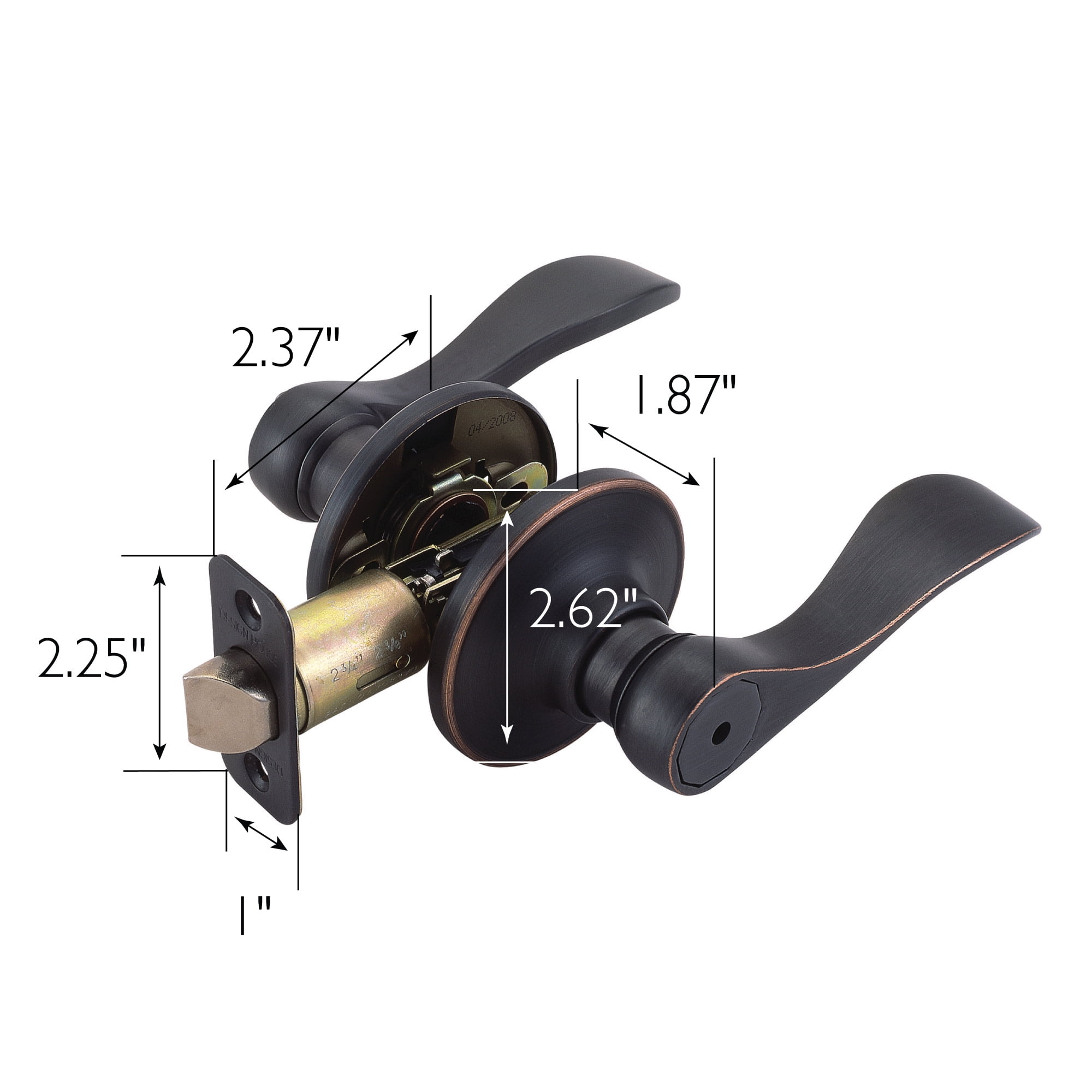

| Size | 6.375 L x 1.94 W x 2.625 H |
| Assembled product weight | 1.75 lb |
